IC100

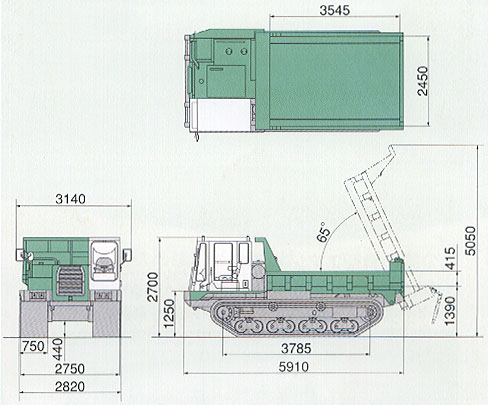

Dimensions(unit: mm)
Specifications
| Payload | 10000kg | 22,046 lbs | |
|---|---|---|---|
| Operating weigt | 13200kg | 29,101 lbs | |
| Travel speed | Low | 7km/h | 4.3 mph |
| High | 12km/h | 7.5 mph | |
| Gradeability | 30° | ||
| Side stability | 50° | ||
| Machine dimensions | Total length | 5910mm | 232.7" |
| Total width | 2825mm | 111" | |
| Total weight | 2700mm | 106.3" | |
| Engine | Model | Mitsubishi 6D24-TE1 | |
| Rated output | 190kW(260PS)/2200min-1 | 254.8HP/2,200min-1 | |
| Cycles-displacement | 6-11945cc | ||
| lgnition method | Fuel injection turbo diesell | ||
| Fuel tank capacity | 250L | 66 gal | |
| Crawler | Between tumbler centers | 3785mm | 149" |
| Crawler span | 2750mm | 108.3" | |
| Crawler width | 750mm | 29.5" | |
| Minimum ground clearance | 440mm | 17.3" | |
| Ground pressure | Empty | 22.4kPa(0.23kgf/cm2) | 3.2psi |
| Loaded | 39.7kPa(0.40kgf/cm2) | 5.8psi | |
| Vessel capacity | Heaped | 5.9m3 | 7.7 yd3 |
| Stuck | 3.5m3 | 4.6 yd3 | |
| Vessel dimensions | Length | 3545mm | 139.6" |
| Width | 2450mm | 96.5" | |
| Height | 415mm | 16.3" | |
| Vessel | Height from ground | 1390mm | 54.7" |
| Maximum dumping angle | 65° | ||
| Dump clearance | 905mm | 35.6" | |
| Travel drive system | HST | ||
| Transmission system | 2-speed automatic+ manual selection | ||
| Brake system | HST brake + parking brake | ||
| HST set pressure | 34.3MPa(350kgf/cm2) | 4,978 psi | |
Main equipment
| Canopy | Option | |
|---|---|---|
| Cabin | O:Standard | |
| Air conditioning | Option | |
| Vessel | 3-gate vessel | - |
| Rear gate vessel | O:Standard | |
| Scoop end vessel | Option | |
●Photographs appearing in the catalog were taken for publication and may differ in some cases from actual objects. Specifications are subject to change without notice due to technical improvements or modifications.
