18NE

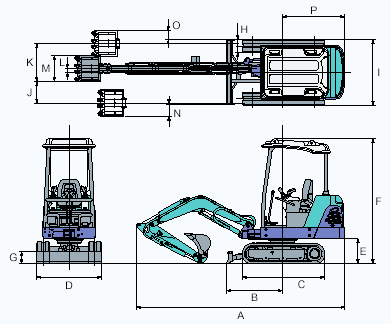

Dimensions(unit: mm) Figure is in proportion to 16N.
| A |
B |
C |
D |
E |
F |
G |
H |
| 3800 |
1035 |
1570 |
1200 |
470 |
2260(2330) |
245 |
230 |
| I |
J |
K |
L |
M |
N |
O |
P |
| 1200 |
575 |
525 |
60 |
430 |
215 |
160 |
1170 |
*( ): figures for canopy version
Working range(unit: mm) Figure is in proportion to 16N.
| A : Maximum digging radius |
3980 |
| B : Maximum digging depth |
2350 |
| C : Maximum digging height |
3860 |
| D : Maximum dumping height |
2870 |
| E : Maximum vertical digging depth |
1610 |
F : Minimum front turning radius
At right boom swing
|
1530
1260 |
Specifications
| Performance |
STD. Bucket capacity(ISO) |
0.055m3 |
1.9ft3 |
| STD. Bucket width |
480mm |
18.9" |
| Operating weight |
1725kg |
3803Ibs |
| Machine weight |
1320kg |
2910Ibs |
| Swing speed |
9.0min-1 |
9.0rpm |
| Travel speed(Low/High) |
2.0/3.7km/h |
1.3/2.3mph |
| Gradeability |
30° |
| Ground pressure |
27kPa |
3.9psi |
| Max. bucket digging force |
15.7kN |
3530Ibs |
| Engine |
Model |
ISUZU 3LB1 |
| Rated output |
16.2KW(22.2PS)/2400min-1 |
21.7HP/2400rpm |
| Fuel tank capacity |
23L |
6.1gal |
| Boom swing system |
Type |
Boom offset with hydraulic cylinder |
| Swing angle(L/R) |
55°/80° |
| Hydraulic System |
Pressure |
20.6MPa |
2988psi |
| Pump hydraulic flow |
16.8L/min×2+11.8L/min |
4.4gpmx2+3.1gpm |
| Dozer blade |
Size(Width × Height) |
1200mm×245mm |
47.2"×9.6" |
| Lift above/Drop below ground |
225mm/285mm |
8.9"/11.2" |
Options
| Loading bucket capacity/width(ISO) |
0.05m3 / 480m |
1.8ft3 / 18.9" |
| Digging bucket capacity/width(ISO) |
0.02m3 / 250mm |
0.7ft3 / 9.8" |
| Long arm STD.bucket capacity/width(ISO) |
0.03m3 / 350mm |
1.1ft3 / 13.8" |
| Reinforced bucket capacity/width(ISO) |
0.05m3 / 480mm |
1.8ft3 / 18.9" |
| Steel shoe width |
230mm |
9.1" |
| Long arm length |
STD+200mm |
STD+7.9" |
| TOPS Canopy |
O(Standard) |
| Steel cab |
O |
| Canopy |
O |
| Air conditioner |
- |
| Power port/Auxiliary hydraulic flow(Theoretical) |
33.6L/min |
8.9gpm |
