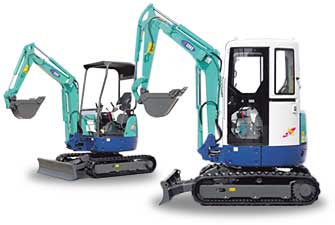

20NX , 25NX

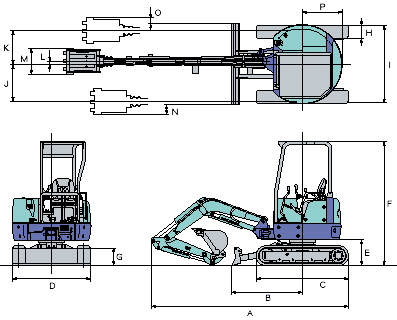

Dimensions(unit: mm) Figure is in proportion to 20NX

  A B C D E F G H
20NX 3810 1360 1810 1500 500 2410 350 250
25NX 3940 1470 1895 1550 560 2460 365 300
  I J K L M N O P
20NX 1500 700 650 50 450 175 125 750
25NX 1550 700 560 50 500 175 35 775
*( ): figures for canopy version

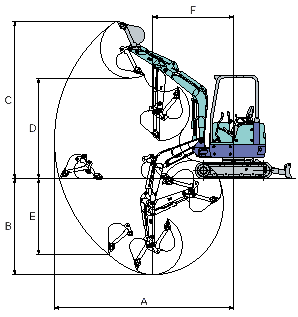

Working range(unit: mm)  Figure is in proportion to 20NX

  20NX 25NX
A : Maximum digging radius 4200 4500
B : Maximum digging depth 2250 2520
C : Maximum digging height 3670 4050
D : Maximum dumping height 2370 2750
E : Maximum vertical digging depth 1750 1950
F : Minimum front turning radius
At right boom swing 		1870
1540		 1940
1510

Specifications

    20NX 25NX
Performance STD. Bucket capacity(ISO) 0.07m3 2.5ft3 0.08m3 2.8ft3
STD. Bucket width 450mm 17.7" 500mm 19.7"
Operating weight 1980kg 465Ibs 2550kg 5622Ibs
Machine weight 1510kg 3439Ibs 1970kg 4343Ibs
Swing speed 9.8min-1 9.8rpm 10min-1 10rpm
Travel speed(Low/High) 2.3/4.5km/h 1.4/2.9mph 2.3/4.5km/h 1.5/2.8mph
Gradeability 30° 30°
Ground pressure 26kPa 3.8psi 27kPa 3.9psi
Max. bucket digging force 19.6kN 4406Ibs 19.6kN 4406Ibs
Engine Model ISUZU 3LB1 ISUZU 3LB1
Rated output 14.2KW(19.3PS)/2000min-1 19.0HP/2000rpm 15.7KW(21.3PS)/2220min-1 21.1HP/2220rpm
Fuel tank capacity 33L 8.7gal 33L 8.7gal
Boom swing system Type Boom offset with hydraulic cylinder Boom offset with hydraulic cylinder
Swing angle(L/R) 60°/80° 50°/90°
Hydraulic System Pressure 20.6MPa 2988psi 20.6MPa 2988psi
Pump hydraulic flow 23.6L/min×2+17L/min 6.2gpmx2+4.5gpm 28.9L/min×2+19.1L/min 7.6gpmx2+5.0gpm
Dozer blade Size(Width × Height) 1500mm×350mm 59.0"×13.8" 1550mm×365mm 61.0"×14.4"
Lift above/Drop below ground 340mm/370mm 13.4"/14.6" 370mm/395mm 14.6"/15.6"

Options

  20NX 25NX
Loading bucket capacity/width(ISO) 0.09m3 / 550m
0.08m3 / 500m		 3.2ft3 /21.7"
2.8ft3 /19.7"		 0.09m3 / 550m 3.2ft3 /21.7"
Digging bucket capacity/width(ISO) *0.04m3/250mm
*0.05m3/320mm
*0.06m3/400mm		 *1.4ft3/9.8"
*1.8ft3/12.6"
2.1ft3/15.7"		 *0.04m3/250mm
*0.05m3/320mm
0.06m3/400mm
0.07m3/450mm		 *1.4ft3/9.8"
*1.8ft3/12.6"
2.1ft3/15.7"
2.5ft3/17.7"
Long arm STD.bucket capacity/width(ISO) 0.06m3 /400mm 2.1ft3 /15.7" 0.06m3 /500mm 2.1ft3 /15.7"
Reinforced bucket capacity/width(ISO) 0.07m3 /450mm 2.5ft3 /17.7" 0.08m3 /500mm 2.8ft3 /19.7"
Steel shoe width(incl.rubber pad attachment holes) 250mm 9.8" 300mm 11.8"
Rubber padded crawler O O
Long arm length STD+300mm STD+11.8" STD+300mm STD+11.8"
TOPS Canopy O(Standard) O(Standard)
Steel cab O O
Canopy O O
Air conditioner O O
Power port/Auxiliary hydraulic flow(Theoretical) 43L/min 11.4gpm 48L/min 12.7gpm
*without side cutter

●Photographs appearing in the catalog were taken for publication and may differ in some cases from actual objects. Specifications are subject to change without notice due to technical improvements or modifications.
