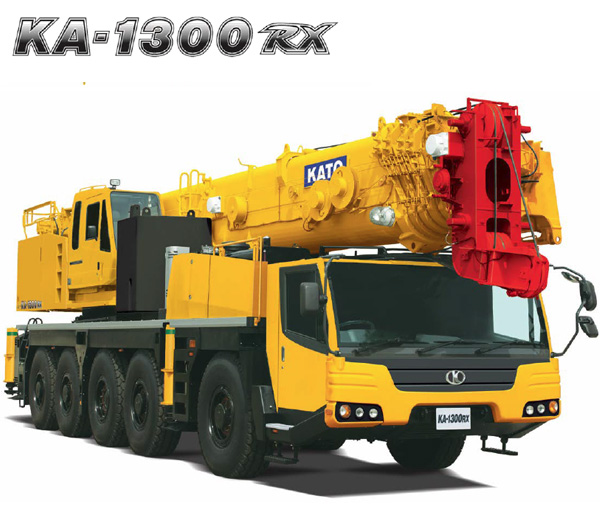

KATO WORKS CO., LTD. launched the 130t lifting capacity all terrain crane KA-1300RX for the global market. Various counterweight configurations are available for the lifting. Clean and reliable Mercedes-Benz engine is mounted. Jib removed lifting is selectable. KA-1300RX is the advanced all terrain crane gathered state-of-the-art KATO technologies.

• Boom

  Boom type:

  6-section, hydraulically telescopic type

  Maximum lifting capacity:

  130 t×2.5 m

  Boom length:

  11.8 m – 52.0 m

  Boom derricking angle:

  -1.8°－ 85°

  Maximum lifting height:

  53.1 m

• Jib

  Jib type:

  4-section (Hydraulic telescoping type)

  Jib length:

  9.2 m – 26.6 m

  Jib offset angle:

  2°(5°)－ 60°(Hydraulic stepless tilting type)

  Maximum lifting height:

  79.6 m

• Engine (for crane)

  Max power:

  150 kW / 2,200 min^-1

  Max torque:

  750 N・m / 1,200 min^-1

• Counterweight

  Various and safe lifting by 5 type counterweigh configurations. Available to travel at job site with 24t counterweight

• ACS with the Touch Panel Color Display with Various Functions

  Support the safe crane operation with the 2 vertical surfaces working range limiter and the load factor limiter.

• Super Luffing Jib (SL Jib)

  Hydraulically telescopic and tilting jib. Lifting capacity without jib is available.

• Winch

  High speed lowering mode by new winch system

• Touch Panel Type Information Display

  Operator can save the fuel consumption by checking the fuel efficiency and the working time on the display. The ECO switch controls the engine speed to save the fuel consumption and reduce the noise during the crane operation

• Carrier

  KATO original carrier with Mercedes-Benz engine

  Max power:

  150 kW / 2,200 min^-1

  Max torque:

  750 N・m / 1,200 min^-1

• Cab

  Wide space for driver and passenger seat. Less fatigue by air seat suspension. Storable bed (2320mm×600mm) for the rest is equipped. Discharge head lamp for the safety driving.

• Steering

  Detect traveling speed and control steering angle automatically. Easy to approach to the confined sites by 5 special steering modes. Steering condition can be checked on display

• Brake

  Disk brake is equipped to all wheels. Brake pad amount warning device is equipped.

• Touch Panel Type Information Display

  Various machine condition can be checked

• Wide Variety of Optional Equipment

  Tea table, Spark arrestor, Slewing warning buzzer, Yellow rev. light (for CRANE). Air heater (for CARRIER).
