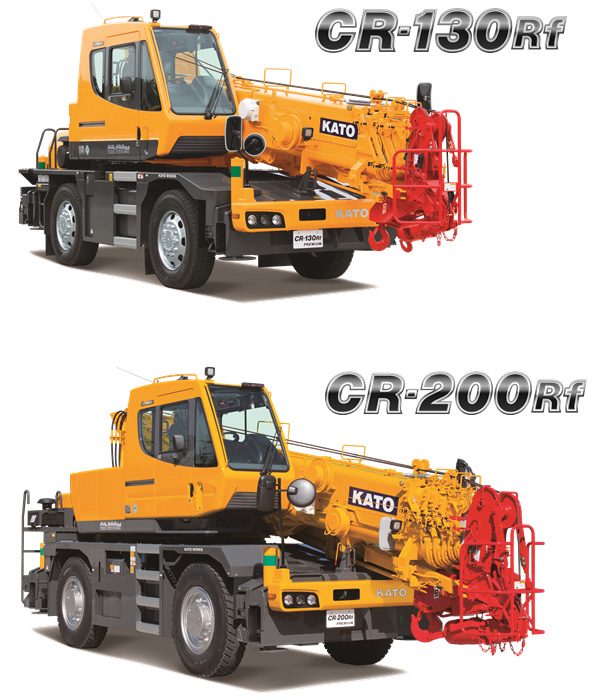

KATO WORKS CO., LTD. will officially launch the New CR-130Rf and New CR-200Rf for the global market this spring. The New 13t and 20t Capacity cranes are equipped with New Stage4 compliant engines and increased environmentally friendly features. The evolution of the KATO City Crane continues with increased performance, safety, versatility and the introduction of new state-of-the-art features.
The New CR-130Rf and CR-200Rf are the complete compact crane for the professional crane user.
CR-130Rf | CR-200Rf | |
---|---|---|
Overrall length | 7,465mm | 8,710mm |
Overall width | 1,995mm | 2,290mm |
Gross vehicle weight | 13,745kg | 19,755kg |
CR-130Rf | CR-200Rf | |
---|---|---|
Engine model | HINO J05E-UM | Cummins QSB6.7 |
Piston displacement | 5.123ℓ | 6.690ℓ |
Maximum output | 129kW/2,500min-1 | 175kW/2,300min-1 |
Maximum torque | 540N·m/1,600min-1 | 888N·m/1,500min-1 |
Maximum traveling speed | 55km/h | 55km/h |
The maximum traveling speed has been increased to 55km/h. Both Front and Rear steering allow maximum versatility in confined areas.
A complete camera system including Blind Spot area allow the operator complete awareness whilst travelling combined with Clearance Sonar (Parking Sensors) for additional warning and safety.
The New semi-automatic outrigger leveling system facilitates a quick & easy setup for the operator.
The simple 3 step installation of the hydraulically luffing fly jib offers a wide range of operating conditions. The New compact and simple to install Searcher Hook expands the range of operation of the versatile City Crane.
CR-130Rf | CR-200Rf | |
---|---|---|
Maximum lifting capacity | 13t | 20t |
Boom length | 5.3m~24m | 6.5m~28m |
Jib offset angle | 5°~60° | 7°~60° |
Jib length | 3.6m, 5.5m | 4.0m, 5.8m |
Maximum Searcher Hook capacity | 3t | 5t |
The Newly Designed Crane Operators Cabin increased operator comfort and reduced operator fatigue. New features in the Operators Cab include; Increased overhead visibility; Enhanced Air Conditioning; New LCD Dashboard Display; New Seat Suspension ….. new features with proven KATO Reliability and Quality.
