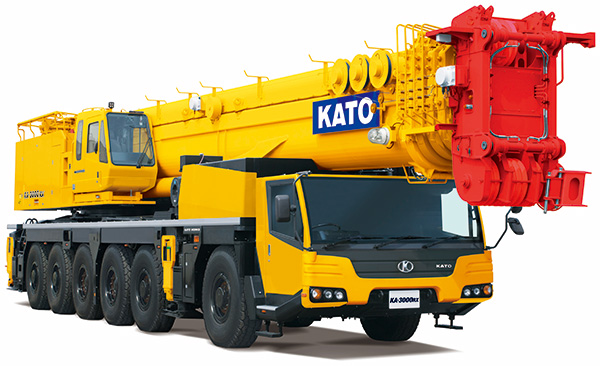

We, Kato-Works Co., Ltd., have launched a 300ton maximum lifting capacity All Terrain Crane KA-3000RX for the global market.

• Boom and Jib

  It has a powerful 55m boom and a very long 35m Supper Luffing (SL) & 54m Heavy Lift (HL) Jib which accommodate for various worksites. When the SL Jib is deployed the maximum lifting height would be 92m and when using the HL Jib the maximum lifting height is 110.7m above the ground.

• Highly Rigid Super Luffing Jib (SL Jib)
  • Self-deployment eliminates the need for a crane and enables a quick deployment.

  Main SL Jib specification

  Jib length:

  2.0m + 10.85m～35m

  Offset angle:

  0°～60°

  Max lifting capacity:

  24t

  Max lifting height:

  92m

  Max lifting radius:

  70m

• Heavy Lift Jib (HL Jib)
  • Deployment of this super long Jib is possible in confined spaces as it has a structure that allows vertical assembly
  • Work in high places is reduced due to hydraulically removable connecting pins.

  Main HL Jib specification

  Jib length:

  4.4m + 13m, 22m, 31m, 40m, 47m, 54m

  Offset angle:

  10°～60°

  Max lifting capacity:

  84t

  Max lifting height:

  110.7m

  Max lifting radius:

  85m

• New type counterweight
  • Lifting work with counterweight is made possible within carrier width due to the side-base weight detachability.
  • Restrictions on stacking order are eased due to common counterweight shape
  • Counterweight configuration are easily changeable according to the situation in the worksite

  Main counterweight specification

  Maximum weight:

  105t (10t×4, 6t×8, base weight)

  Tail slewing radius:

  5.5m (with weight), 4.4m (weightless)

• Engine
  • Equipped with a fuel-efficient Daimler OM906LA engine with high performance.

  Main engine specification

  Maximum power:

  205kW/2,200min^-1

  Maximum torque:

  1,100N・m/1,200min^-1

• Various Progressive Features
  • Newly adopted:＊Radio controller for assembly/disassembly, Pilot switch (supports assembly work) outrigger reaction force, LED work light, ACS outside indicator (LED),
  • Standard:Left-rear camera, Winch camera, Stanchion (Boom, counter weight), Searchlight, SL Jib stand
  • Cab Interior: 24V Accessory socket, USB port, PA system, ＊Door visor, ＊Lunch table, Note) features marked with “＊” are optional.
CARRIER
• Engine
  • Equipped with a high performance & fuel-efficient Daimler OM502LA engine

  Maximum power:

  405kW/1,800min^-1

  Maximum torque:

  2,600N・m/1,300min^-1

  The after treatment device has SCR (Selective Catalytic Reduction) which reduces the NOx in the emission.
• Wide Cab
  • Adopts an air suspension on both the drives and passengers seats, hence fatigue is greatly reduced.
  • The cab is very spacious and a walk through is possible between the driver and passengers seats.
  • Equipped with a large retractable bed (2320mm×600mm) as a standard feature
  • Protector type discharge head lamp (low beam) as standard feature
• Electronically controlled rear steering system
  • Steering angle control based on traveling speed improves travelling stability
  • Various steering modes make it easy to move in tight spaces
  • Equipped with a visual display of steering state
• All wheels are full air disc brake
  • All wheels are equipped with disc brakes that have a better heat dissipation and maintainability than drum brakes
  • Adopts a warning device that displays the amount of pad remaining on the brake pads (displayed with lamp when replacement period arrives)
• Touch Screen control COR information display
  • Easy to view various information
• Various Progressive Features
  • Newly adopted:Outrigger radio control (with horizontal aux. function), Outrigger reaction force display device.
  • Standard:Rear camera, centralized lubrication device
  • Cab Interior: Air conditioner, bed,
