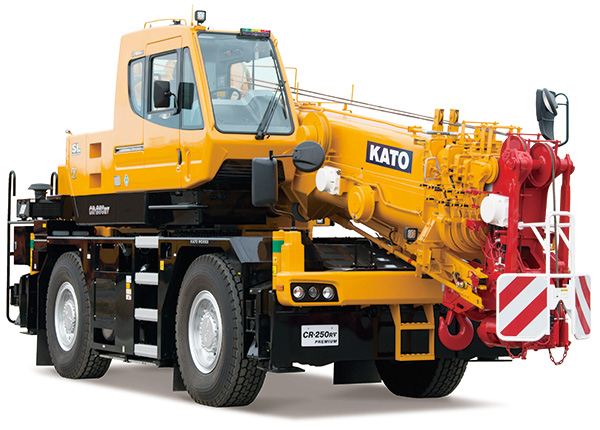

KATO WORKS CO., LTD has officially launched a new CityRange “CR” model, the CR-250RV as an addition to the current line-up for the global market. CR models are designed for maneuvering in the cities and for lifting work in confined worksites.

• Boom and Jib “EJIB”

  This mobile crane is equipped with the first ever EJIB on a CR model, based on the 4S concept namely; Slant Boom, Safety, Speedy, Small Space. The EJIB mechanism allows for efficient jib deployment which requires only two external cab work for set up.

• Ergonomic Cab

  The cab secures an all-round excellent view and provides great operator comfortability due to hydro-pneumatic suspension. It has built-in IC tag providing high level security therefore reduces crane theft.

• KATO ACS (Automatic Crane System)

  An automatic safety device feature that instantly responds to any direct changes to various operating configurations. It has a range of limiting functions that increase safety during operation. With its high-intensity color LCD, the new ACS makes operations easier as it provides illustrated key switches, enabling quick identification of their functions for each operation.

• KATO SAFETY FEATURES

  A combination of advanced safety features that provide an even safer driving and/or crane operating environment minimizing the risk of undesired events.

  • Surround View Camera:  It displays a real time birds-eye view to the operator ensuring an all-around view for safer traveling and crane operation.
  • Human Detect Assist System:  Another safety feature that assist the operator by detecting people near the crane that are not visible to the operators view range.
  • Anti-Lock Braking System (ABS) :  Equipped with ABS which further enhances braking power and significantly reduces braking distance especially on slippery surfaces.
• Touch Screen COR display

  This is a colored display that shows various information for example fuel consumption, operations time etc. It also provides a range of functions which include the ECO switch which saves fuel by adjusting for optimum work engine speed during crane operation. During non-operation the hydraulic pump outlet and fuel consumption are also greatly reduced thanks to the Auto-Minimum-Control adoption.

• Searcher Hook (option)

  The 2 position offset angle Searcher Hook is a breakthrough feature for inserting operation. Therefore this feature performs best in height limiting work sites such as warehouses, balconies and soffits.

• General Specification

  Maximum lifting capacity:

  25t x 2.8m

  Boom length:

  6.7m - 29.0m (6 sections)

  Jib length:

  5.3m ～ 8.2m (2 sections, hydraulic telescoping & luffing)

  Engine:

  Cummins B6.7 (EU Stage5)

  Overall Length:

  9.195m

  Overall Width:

  2.395m

  Overall Height:

  3.495m

  Gross Vehicle Weight:

  23,795kg

  Front Axle Weight:

  11,895kg

  Rear Axle Weight:

  11,900kg

• Optional Features

  Searcher Hook, Anemometer, Tire pressure monitoring system, Door visor, Lunch table Resins/Aluminum outrigger plate and storage etc.
