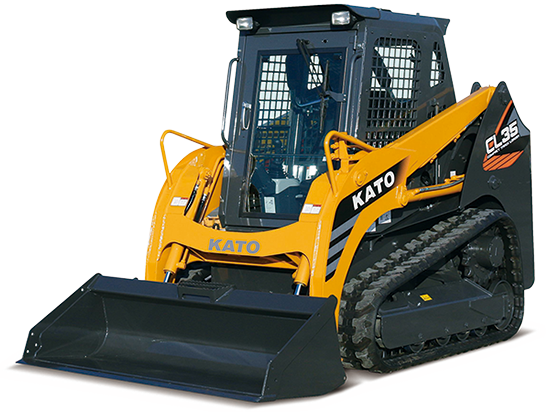

Launched a new Compact Track Loader"CL35-4F" for the Global Market
KATO WORKS CO., LTD has officially launched a new Compact Track Loader, the CL35-4F as an addition to the current line-up for the global market.
CL35-4F Product Features
- Engine
Model |
Kubota V2403-CR-TE4B-TLKW-1 |
Rated Output |
46.3kW±5% / 2,700min-1 (63.0ps / 2,700rpm) |
Displacement |
2.434L |
Fuel Tank Capacity |
91L |
- General Specifications
|
Canopy |
Cabin |
Bucket Capacity SAE Heaped |
0.36m3 |
Operating Weight |
3,540kg |
3,600kg |
Transportation Weight |
3,465kg |
3,525kg |
Travel Speed (Low/High) |
6.7km / 10km/ h |
Gradeability |
58%(30°) |
Tipping Capacity J732 |
2,230kg |
Rated Operation Capacity SAE J818 |
780kg |
Ground Bearing Pressure |
38.8kPa |
39.4kPa |
Bucket Digging Force |
28.6kN |
- Optional Features
- ROPS-certified Cabin, Air Conditioner, Throttle Pedal
